Description
One-click start, simple and easy to use
Parameters are pre-configured before leaving the factory, and trip data can
be recorded with one click. It is simple and easy to use.
Product Details

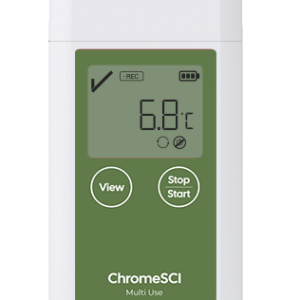

● Datalogger with LCD display, you can view the real-time temperature and humidity data, factory parameters pre-configured, a key to start it can be placed in the target monitoring environment
● Mainly used to monitor and record the temperature and humidity data of fresh products such as vegetables, fruits and meat during storage and transportation.
● Widely used in all aspects of warehousing and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, etc.
Technical parameters
| LED indicator | green (recording, normal), red (overtemperature alarm) |
| battery life | up to 180 days (shelf life 2 years) @ 25 ℃,5 minutes recording interval |
| Measurement range | -30℃~+70℃ (0-100%RH) |
| measurement accuracy | ± 0.5°C (± 3% RH @ 20-80% RH,± 4% RH @ others) |
| resolution | 0.1°C (1%RH) |
| alarm point | can set 4 high and low alarm points (alarm threshold and over-temperature trigger time can be customized according to customer needs) |
| recording interval | 1 minute -24 hours (can be factory configuration) default 5 minutes |
| storage capacity | maximum 33000 |
| startup delay | 0 minutes -24 hours (can be factory configuration) default 10 minutes |
| Start Mode | Manual Start |
| Report Format | PDF/CSV/PDF & CSV (optional, factory configured) |
| protection level | IP65 |
| Battery Type | 3.0V CR2032 |
| Connection Mode | USB2.0 |
| Product Size | 105*40*10mm |
| Product Weight | 30g |
| Product Certification | CE,EN12830:2018,RTCA/DO-160G (Aviation Safety Directive),RoHS, Original Factory Sampling 3-point Calibration (AQL 0.25) GB/T 35145-2017 |
